Equipment Capabilities
We invest in Technology that keeps Altek’s facility running efficiently, allowing us to consistently provide the best possible product to our customers.
Surface Mount Equipment and specifications:
Board Size Min = 50 mm x 50 mm (2” x 2”)
Board Size Max = 410 mm x 460 mm (16” x 18”)

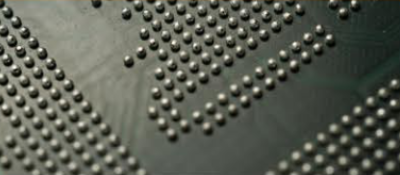

Ball Grid Array and Advanced SMD’s
BGA’s (BGA placement up to 55mm² 1.0mm pitch)
Wave and Selective Soldering – Lead or Lead Free (RoHS)

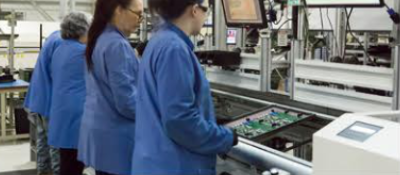

Through-Hole assembly equipment
Board Size Min = 50 mm x 50 mm (2” x 2”)
Board Size Max = 350 mm x 460 mm (14” x 18”)

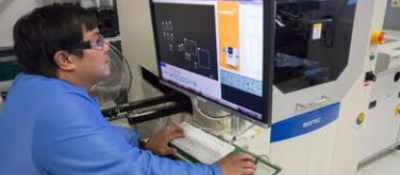

Inspection
Automated Optical Inspection
Board Size Min = 50 mm x 50 mm (2” x 2”)
Board Size Max = 410 mm x 460 mm (16” x 18”)
X-Ray Inspection

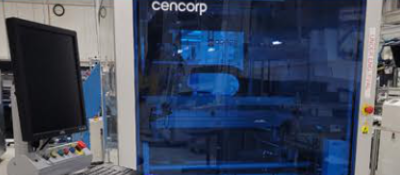

Automated Depaneling

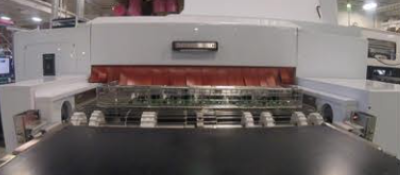

Cleaning
Board Size Min = n/a
Board Size Max = 24 x 25”

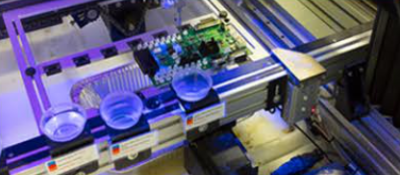

PCB Conformal Coating and Potting
PCB Conformal Coating
Circuit Board Testing

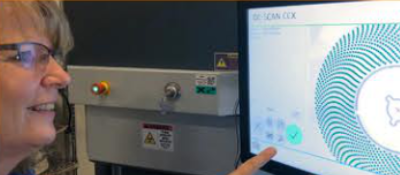

Supporting Equipment
We invest in Technology that keeps Altek’s facility running efficiently, allowing us to consistently provide the best possible product to our customers.
